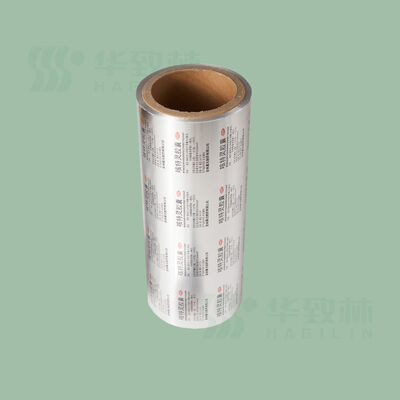

Pharmaceutical Custom Printed High Barrier Aluminum Foil Film Oxygen Proof Laminated Structure Heat Sealable

Brand Name:	Hagilin
Model Number:	Customerized
MOQ:	1Roll
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	10000ton/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO GMP FDA

Material & Temper:

Aluminum

Foil Thickness:

Customerized

Barrier Performance:

Water Vapor Transmission: ≤0.01g/(m²·24h); Oxygen Transmission: ≤0.1cm³/(m²·24h·atm); 100% Light Block

Printing Capability:

10-color Max

Shelf Life:

2 Years (10-25℃, Dry, Dark Storage)

Compliance:

ISO FDA GMP

Packaging Details:

Double LDPE Bags

Supply Ability:

10000ton/year

Highlight:

Heat Sealable Aluminum Foil Film

Laminated Aluminum Foil Film

High Barrier Aluminum Foil Film

Product Description

Pharmaceutical High-Barrier Aluminum Foil Film with 100% Light/Moisture/Oxygen Barrier, Custom Imprinting for Traceability, and Heat-Sealable with PVC/PVDC/PET/PP

Pharmaceutical Custom-Printed High-Barrier Aluminum Foil Film

Advanced laminated aluminum foil film providing complete light, moisture, and oxygen barrier protection with custom printing capabilities for pharmaceutical packaging applications.

Material Composition & Structure

Core composite structures featuring medical-grade aluminum foil as the primary barrier layer with custom laminates:

PTP Blister: OP (protective overcoat) / AL / heat-seal layer (HSL)
Alu-Alu Cold-Form: OPA / AL / PVC / AL
Strip Pack: AL / LDPE / HSL

Key Performance Characteristics

Medical water-based ink compliant with ISO 10993 and FDA food-contact standards
Double-sided printing capability
Pinhole-free foil construction
Heat-sealable for secure packaging
Anti-static coating option available
100% barrier against light, moisture, and oxygen
Water vapor transmission: 0.01g/(m²*24h)
Oxygen transmission: ≤0.1cm³/(m²*24h*atm)

Core Advantages

Ultimate high-barrier protection (blocks 100% light, moisture, oxygen, microbes)
Full-area custom printing (logo, batch/lot numbers, expiry dates, drug information, barcodes, QR codes)
Heat-seal compatibility with PVC, PVDC, PET, and PP substrates
GMP traceability throughout manufacturing process
Pinhole rate ≤1 hole (0.1-0.3mm)/m²
Pharmaceutical-grade biocompatibility
Cost-effective for high-volume production
Optional anti-counterfeiting embossing

Regulatory Compliance: ISO GMP FDA

Applications

Primary and secondary packaging for moisture and light-sensitive pharmaceuticals including tablets, capsules, granules, powders, injectable closures, medical device components, diagnostic reagents, and cleanroom pharmaceutical materials requiring long-term shelf-life protection.

Customization Options

Print color customization
Size specifications
Thickness variations

Product Description

This pharmaceutical printed aluminum foil film delivers extreme light, moisture, and oxygen barrier performance with fully customizable printing for GMP traceability, ideal for protecting moisture and light-sensitive drugs and medical components through extended shelf lives. The product utilizes aluminum foil as the core barrier layer, combined with functional laminates including protective overcoat, heat-seal layer, and cold-form structures to ensure pinhole-free, airtight seals and compatibility with various blister substrates.

The water-based ink is validated to resist fading and peeling during processing and storage, supporting custom content such as drug names, batch numbers, expiry dates, and anti-counterfeiting QR codes—critical for pharmaceutical supply chain traceability. Available in PTP blister, Alu-Alu cold-form, and strip pack structures, the film undergoes comprehensive 100% pinhole, adhesion, and seal integrity testing, meeting rigorous ISO and FDA standards.

Manufactured in an ISO Class 7 cleanroom environment, the product offers exceptional biocompatibility (endotoxin <0.25 EU/mL) and anti-static options for cleanroom applications, providing the optimal balance of ultimate protection, traceability, and usability for pharmaceutical manufacturers, hospitals, and laboratory suppliers.
