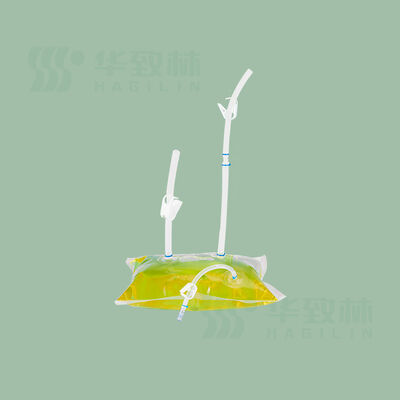

GMP 2D Pharmaceutical Storage Transfer Bag with Double Welded Leak Proof for APIs and Cell Harvests

Brand Name:	Hagilin
Model Number:	Customerized
MOQ:	10pcs
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	100000pcs/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO FDA GMP

Material:

Multi-layer Co-extruded Biopharmaceutical Film (Renolit 9101)

Certification:

GMP, ISO FDA

Capacity Range:

50mL - 50L

Seal Technology:

Double-welded Seams + Double-welded Port Connections (100% Leak Testing)

Sterilization:

Gamma Irradiation/EO

Tubing:

Silicone/ TPE Thermoplastic

Connectors::

Luer (PP), MPC (PC), TC (25/50, Optional)

Shelf Life:

2 Years (stored In Cool, Dry, Dust-free Environment)

Packaging Details:

Double LDPE Bags+ Carton

Supply Ability:

100000pcs/year

Highlight:

gmp sampling bag

gmp transfer bag

pharmaceutical sampling bag

Product Description

GMP Certified 2D Pharmaceutical Storage Bag with Double-Welded Leak-Proof Seals and 50mL-50L Capacity for APIs and Cell Harvests

Small-Capacity 2D Pharmaceutical Storage Bags

Double-welded leak-proof design specifically engineered for APIs, liquids, and cell harvests with GMP certification

Quick Specifications

Material	Multi-layer co-extruded biopharmaceutical film (Renolit 9101)
Capacity Range	50mL - 50L
Core Advantages	Double-welded leak-proof seal, high transparency, low residual liquid
Compliance	GMP, ISO FDA
Production Environment	Class C+A clean room with 100% leak integrity testing

Key Applications

Storage & transfer of small-volume APIs
Pharmaceutical liquids handling
Cell harvest processing
Buffer and media preparation

Customization Options

Capacity customization (50mL-50L)
Tubing materials: Silicone or TPE thermoplastic
Connectors: Luer PP, MPC PC, or TC
Custom labeling area

Safety & Quality Assurance

No DNase/RNase contamination
Pyrogen-free
Low extractables
Biocompatible materials
Gamma-sterilized and ready for immediate use

Product Overview

In small-volume biopharmaceutical processes—including API sampling, cell harvest aliquoting, and buffer preparation—traditional storage solutions often present critical limitations. Single-welded bags risk leakage during transfer, while rigid containers prove bulky for small volumes and difficult to empty completely, leading to costly loss of high-value materials and GMP compliance issues.

Our Small-Capacity 2D Pharmaceutical Storage Bags are specifically engineered to address these challenges through advanced double-welded seal technology. Both bag body seams and port connections undergo precision heat-sealing twice, creating gap-free seals that pass 100% leak testing (pressure hold + vacuum decay) to eliminate seepage—even with low-volume, high-viscosity liquids.

Constructed from multi-layer co-extruded biopharmaceutical film (Renolit 9101), these bags provide excellent chemical compatibility for acidic/alkaline APIs and cell harvests, along with low gas permeability to preserve sensitive liquid stability. The specialized wedge-shaped design utilizes physics to guide liquid aggregation for thorough emptying, while boat-type connectors prevent residual liquid buildup at the bag mouth—reducing residual volume to ≤0.5% of total capacity and minimizing waste of small-batch materials.

Manufactured in Class C+A clean room environments, these gamma-sterilized bags are ready for immediate deployment in sterile processes. High transparency enables clear visual inspection of liquid clarity, supporting critical process decisions. Whether for small-batch API storage, cell harvest sampling, or buffer preparation, these double-welded 2D bags deliver reliable leak protection, efficient liquid emptying, and full regulatory compliance for pharmaceutical workflows.
